私たちのモーターは,あなたのエネルギーを節約し,あなたの成功を駆動します!

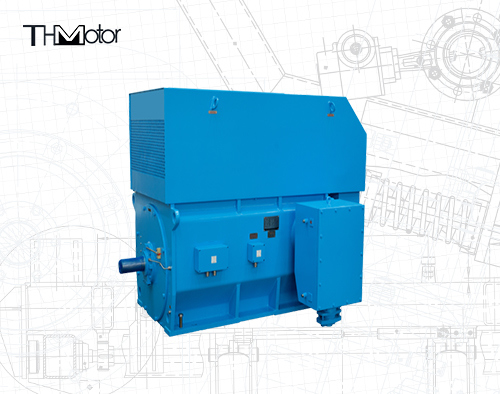

| ハイライト: | 20000kw High Voltage AC Motor,160-20000kW Three-phase induction motor,H355-1400 High Voltage AC Motor |
||
|---|---|---|---|
The TEAAC series motors are high-efficiency, energy-saving industrial motors featuring lower shaft height, higher power output, improved efficiency, and reduced noise levels. Designed for safe, reliable operation and easy maintenance, these motors are ideal for driving various industrial equipment including ventilation fans, compressors, water pumps, crushers, cutting machinery, and transportation systems. Suitable for demanding applications in mining, steel production, machinery, oil & gas, chemical processing, and power stations.
| Feature | Specification |
|---|---|
| Cooling method | IC611, IC616, IC666 |
| Power range | 160-20000kW (210-27000Hp) |
| Frame size | H355-1400 |
| Speed range | 300-3600rpm |
| Frequency | Fixed (50Hz/60Hz)/Variable |
| Voltage range | 3000-13800V |
| Protection grade | Up to IP66 |
| Explosion proof type | Ex ec, Ex pxb, Ex pzc, Ex tb |
| Rotor material | Cast aluminum/copper bars |
| Mounting type | IMB3, IMB35, IMV1 |
| Standards | GB, IEC, NEMA, BS, API, EN |
| Certifications | IEC Ex, ATEX, CCC, CSA, UL |
